Golf Mk4
Body
General body repairs, interior / Interior equipment
Compartments, covers and trims / moving_and_installing_glove_box/">Removing and installing glove box
Removing
Removing
Removing
–

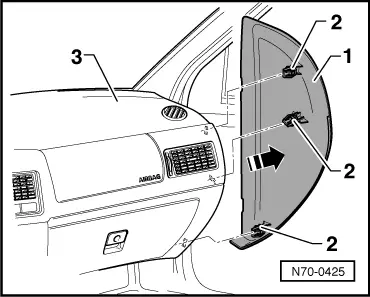

Release cover
-1-
from dash panel
-3-
complete with the clips
-2-
.
–
Pull out cover
-1-
-arrow-
.
–
Remove centre console
→ Chapter
.
Note
Bolt
-2-
secures glove box
-1-
to the carrier plate and is located behind centre console.
–
Remove seven screws
-arrows-
.
–
Remove glove box
-1-
.
