Golf Mk4

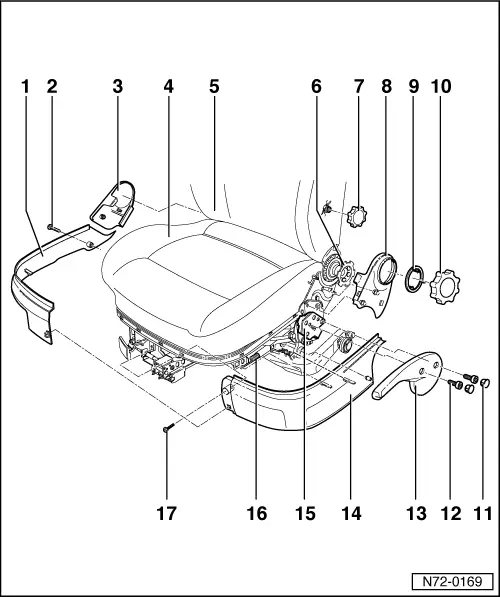

Assembly overview - front seat
Assembly overview - front seat
(2-door)
  Note
When changing the backrest on vehicles without “Easy Entry” the hook for “Easy Entry” lock must be drilled out.

1 - Seat trim
q   Front right
2 - Bolt
3 - Seat trim
q   Rear right
4 - Seat
5 - Backrest
6 - Transfer rod
q   For backrest adjustment
7 - Adjusting knob
q   For lumbar support
8 - Seat trim
q   Rear left
9 - Spacer ring
10 - Adjusting knob
q   For backrest
11 - Cover
q   Qty. 2
12 - Bolt
q   Qty. 2
13 - Adjustment lever
q   For seat height
14 - Seat trim
q   Front left
15 - Seat height adjustment
16 - Tension spring
q   Qty. 2
17 - Bolt
