Golf Mk4
|

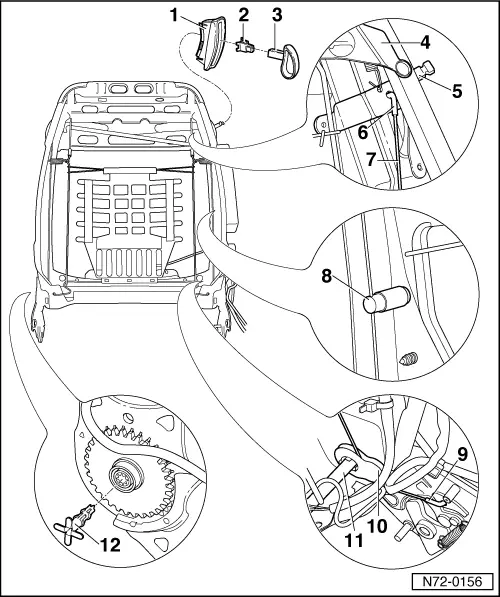

| – | Lever off handle -3- and unclip cover -1-. |
| – | Remove seat cover and padding → Chapter. |
| – | Break off four small metal tabs on retaining sleeve -12- and drive remaining retaining sleeve -12- into transfer rod -11- with a drift. |
Note| Clip -2- and retaining sleeve -12- must be renewed after removing. |
| – | Press locking lever -5- down and pull out cable hook -6-. |
| – | Unclip centre cable guide -8- from backrest frame -4-. |
| – | Pull transfer rod -11- out of backrest frame until lower cable guide -10- can be unclipped. |
| – | Unhook cable hook -9- and pull cable -7- out of backrest frame -4-. |
