Golf Mk4
| ABS, ABS/EDL and ABS/EDL/TCS Mark 20 IE |
| 1 - | ABS hydraulic unit -N55- |
| q | Removing and installing → Chapter |
| 2 - | ABS control unit -J104- |
| q | Removing and installing → Chapter |
| 3 - | ABS/EDL and ABS/EDL/TCS hydraulic unit -N55- |
| q | Removing and installing → Chapter |
| 4 - | ABS/EDL and ABS/EDL/TCS control unit -J104- |
| q | Removing and installing → Chapter |
| 5 - | Brake light switch -F |
| q | Removing and installing → Chapter |

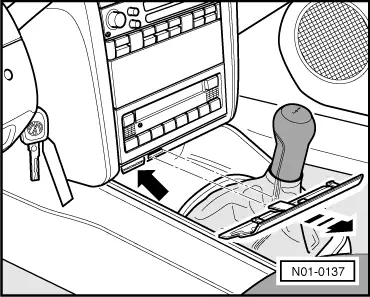

| 6 - | Diagnostic connection |
| q | → Fig. |
| 7 - | TCS button |
| q | Only vehicles with ABS/EDL/TCS |
| 8 - | ABS warning lamp -K47- |
| q | Location: in dash panel insert |
| q | Function: → Chapter |
| 9 - | Brake system warning lamp -K118- |
| q | Location: in dash panel insert |
| q | Function: → Chapter |
| 10 - | Stabilisation program (TCS/ESP) warning lamp -K155- |
| q | Location: in dash panel insert |
| q | Function: → Chapter |
| 11 - | Longitudinal acceleration sender -G251- |
| q | Only four-wheel drive vehicles with Haldex coupling |
| q | Removing and installing → Chapter |
| 12 - | Front left/right speed sensor -G45-/-G47- |
| q | Removing and installing → Chapter |
| 13 - | Rear left/right speed sensor -G44-/-G46- |
| q | Front-wheel drive → Chapter |
| q | Four-wheel drive → Chapter |
| 14 - | Wheel hub with rotor for wheel speed sensor |
| q | Front-wheel drive → Running gear, axles, steering; Front and four-wheel drive; Rep. Gr.42 |
| q | Four-wheel drive: → Running gear, axles, steering - front and four-wheel drive; Rep. Gr.42 |
| 15 - | Wheel hub with rotor for wheel speed sensor |
| q | Removing and installing → Running gear, axles, steering - front and four-wheel drive; Rep. Gr.40 |
|
|
