Golf Mk4

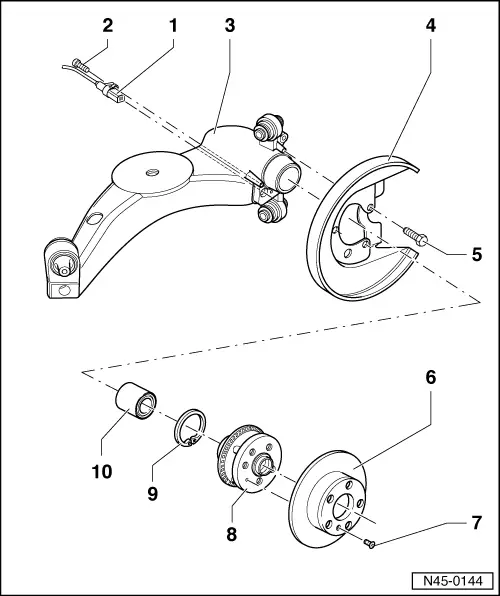

| Removing and installing parts of ABS system on rear axle - four-wheel drive |
| 1 - | ABS speed sensor |
| q | Before inserting sensor, clean inner surface of fitting hole and coat with lubricating paste G 000 650 |
| q | Removing and installing (four-wheel drive) → Chapter |
| 2 - | Allen bolt, 8 Nm |
| 3 - | Trailing arm |
| 4 - | Cover plate |
| 5 - | Hexagon bolt, 10 Nm |
| 6 - | Brake disc |
| 7 - | Cross-head screw |
| 8 - | Wheel hub with rotor |
| q | Pressing out and in → Running gear, axles, steering - front and four-wheel drive; Rep. Gr.42 |
| 9 - | Circlip |
| 10 - | Wheel bearing |
| q | Renew each time after removing |
| q | Pressing out and in → Running gear, axles, steering - front and four-wheel drive; Rep. Gr.42 |
