Golf Mk4

Checking combination valve
Checking combination valve
Test prerequisites
l  Hose connections must be leak-tight.
  Note
Do not use compressed air for following test!
–  Remove engine cover.

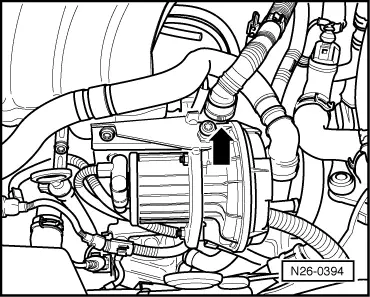

–  Remove pressure hose -arrow- on Secondary air pump motor -V101-.
  Note
To release, press buttons on hose coupling together.
–  Use slight pressure to blow into pressure hose to combination valve. Combination valve must be closed.
–  Use high pressure to blow into pressure hose to combination valve. Combination valve must open.
If combination valve fails to open or is continuously open:
–  Renew combination valve.
  N26-0394
