Golf Mk4

Removing and installing parts of fuel supply system
Removing and installing parts of fuel supply system
  Note
t  Hose connections are secured with either spring-type or clamp-type clips.
t  Always replace clamp-type clips with spring-type clips.
t  Fuel hoses in engine compartment must be secured only with spring-type clips. The use of clamp or screw-type clips is not permissible.
t  The fuel extractor -VAS 5190- is recommended to empty the fuel tank.
t  Spring-type clip pliers -VAS 5024A- are recommended for removal and installation of spring-type clips.
Special tools and workshop equipment required

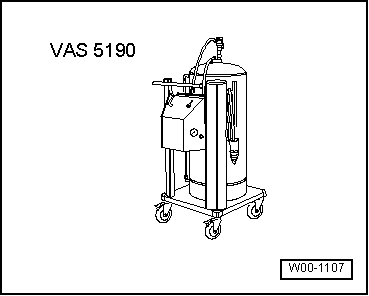

t  Fuel extractor -VAS 5190-
  W00-1107

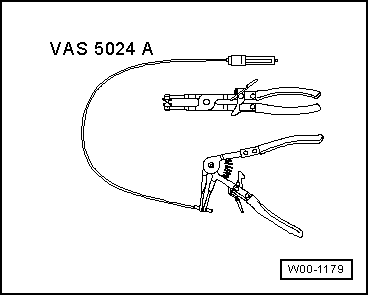

t  Spring-type clip pliers -VAS 5024A-
Observe safety precautions → Chapter.
Observe rules for cleanliness → Chapter.
Removing and installing fuel tank with its attachments and fuel filter → Chapter.
Repairing accelerator mechanism → Chapter.
Adjusting throttle cable → Chapter.
Checking electronic power control (EPC) → Chapter.
Servicing parts of the activated charcoal filter system → Chapter.
  W00-1179
