Golf Mk4

Removing and installing sunlight penetration photosensorG107
Removing and installing sunlight penetration photosensor -G107-
Removing

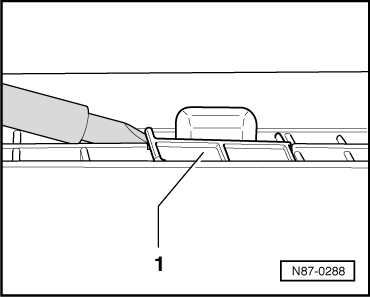

–  Use a screwdriver to unclip sunlight penetration photosensor -G107--1- along side.
–  Disconnect connector on sunlight penetration photosensor -G107-.
Installing
–  Install in reverse order.
  N87-0288
