Removing and installing operating and display unit for Climatronic air conditioning systemE87 with Climatronic control unitJ255
Removing and installing operating and display unit for Climatronic air conditioning system -E87- with Climatronic control unit -J255-
  Note
t  The Climatronic control unit -J255- and the operating and display unit for Climatronic air conditioning system -E87- are a single component which cannot be dismantled.
t  Before beginning repair work, perform the following steps → Chapter.
Removing

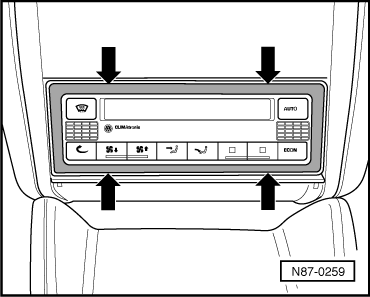

–  Unclip trim for operating and display unit for Climatronic air conditioning system -E87- with a screwdriver and a pad -arrows-.
  N87-0259

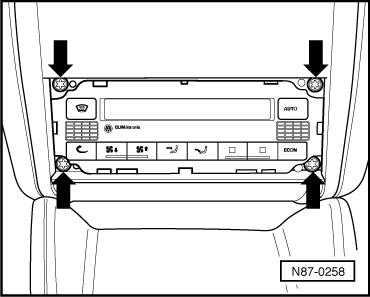

–  Remove bolts -arrows- from instrument panel trim.
–  Pull out operating and display unit with control unit.
–  Release connectors and pull off.
–  Remove operating and display unit with control unit.
Installing
–  Install in reverse order.
  Note
Code Climatronic control unit -J255- after installation → Chapter.
  N87-0258
