Golf Mk4

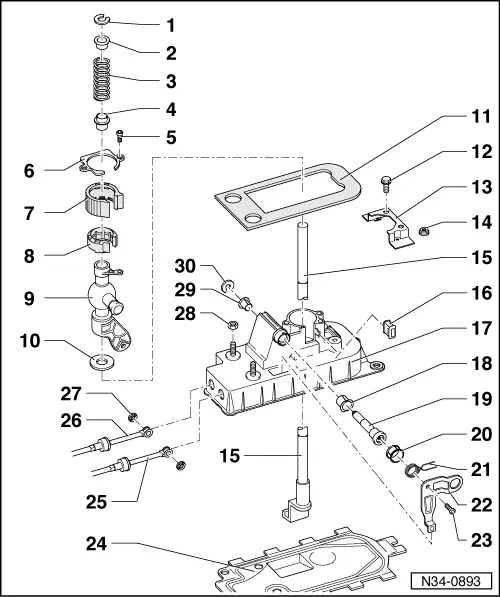

Repairing gear lever and selector housing
Repairing gear lever and selector housing
  Note
Lubricate bearing positions and sliding surfaces with polycarbamide grease -G 052 142 A2-.

1 - Securing clip
q   Removing and installing → Fig.
2 - Bush
3 - Compression spring
4 - Bush
5 - Torx bolt, 5 Nm
6 - Cover
7 - Damping
8 - Ball socket
9 - Gear lever guide
10 - Damping washer
11 - Seal
q   Between selector housing and underbody
q   Self-adhesive
q   Bond to selector housing
12 - Bolt, 25 Nm
13 - Bracket
q   Secured to body
14 - Hexagon nut, 25 Nm
q   For bracket on body.
15 - Selector lever
16 - Damping
17 - Selector lever housing
18 - Bearing bush
19 - Pivot pin
20 - Guide bush
21 - Compression spring
q   Installing → Fig.
22 - Gate selector lever
23 - Torx bolt, 5 Nm
24 - Base plate
q   Bend open tabs to remove
q   Renew
25 - Gate selector cable
q   On gate selector lever
q   Installation position → Chapter
26 - Gear selector cable
q   Press onto gear lever guide
q   Installation position → Chapter
27 - Securing clip
28 - Hexagon nut, 25 Nm
29 - Bearing bush
q   Fits in one position only
30 - Securing clip

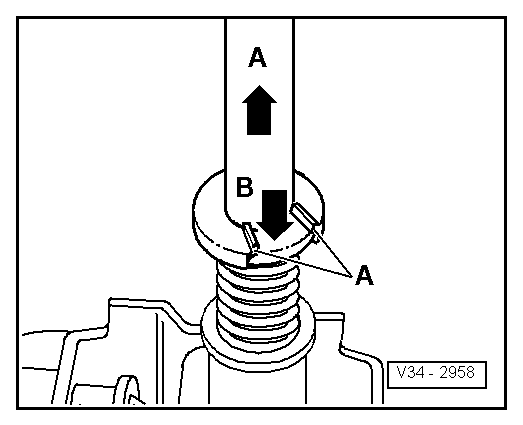

Removing and installing securing clip
–  To remove or install securing clip, pull selector lever in direction of arrow -A- and at same time push down spacer bush in direction of arrow -B- to stop using screwdriver.
  Note
t  Do not cant spacer bush when pushing down.
t  Slot in gear lever for securing clip must be visible.
t  Carefully release tension from spring.
  V34-2958

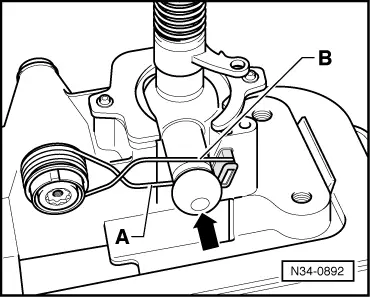

Installing compression spring
–  Insert compression spring so that extension -A- lies underneath pin -arrow-.
–  Then pull extension -B- to selector lever so that it sits on top of pin -arrow-.
  N34-0892
