Golf Mk4

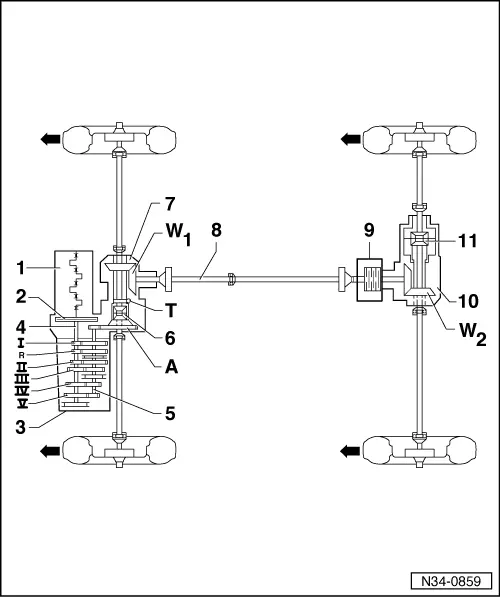

Overview - power transmission
Overview - power transmission
Designation
-Arrows- point in direction of travel.

1 - Engine
2 - Clutch
3 - Manual gearbox
4 - Input shaft
5 - Output shaft
6 - Differential
7 - Bevel box
8 - Propshaft
9 - Haldex coupling
10 - Rear final drive
11 - Differential

Ratio
-Arrows- point in direction of travel.

I - 1st gear
II - 2nd gear
III - 3rd gear
IV - 4th gear
V - 5th gear
R - Reverse gear
A - Final drive
W1 - Front bevel box
W2 - Rear bevel box
