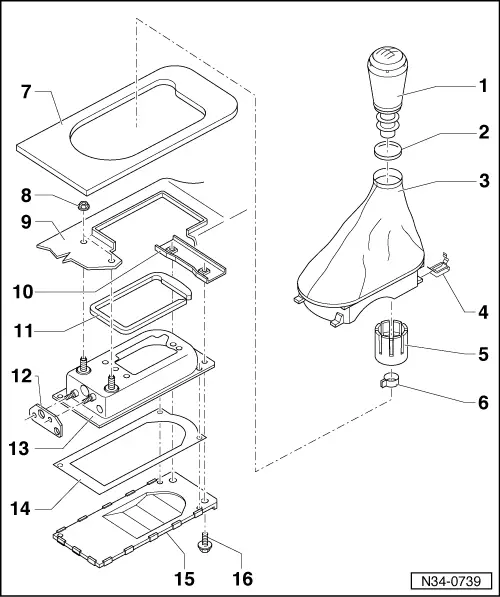

• Selector lever knob
• ◆ Screw on and off together with gaiter
• Gaiter collar
• Gaiter with frame
• ◆ Remove and install together with gear stick knob
• ◆ Separating from gear stick knob => Fig.1
• ◆ Connect to gear stick knob before installing Fig.1
• Clip
• Bush
• Clamp
• ◆ To secure gear stick knob on gear stick
• Cover

• Hexagon nut, 25 Nm
• Floor plate
• Retainer
• ◆ For gear stick housing
• Gasket
• ◆ Between selector housing and floor
• ◆ Self-adhesive
• ◆ Bond to gear stick housing
• Gasket
• ◆ Between selector cables and gear stick housing
• Selector housing
• Gasket
• ◆ Self-adhesive
• ◆ Bond underneath gear stick housing

• Base plate
• ◆ Open tabs to remove
• ◆ Renew
• Hexagon bolt, 25 Nm

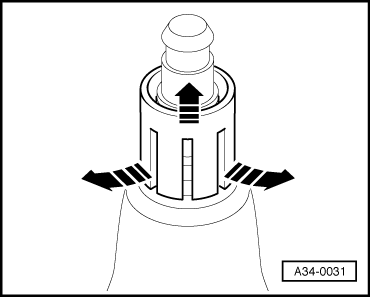

→ Fig.1     Separating cover from gear stick knob and assembling to gear stick knob

• ‒ Turn cover inside out.
• ‒ Carefully lever segment with a screwdriver in direction of arrow and simultaneously pull the gear stick knob out.

Installation is carried out in the reverse sequence, when doing this note the following:

• ‒ Insert gear stick knob in cover.
• ‒ Push sleeve onto gear stick knob and engage.
• ‒ Install gear stick knob and gaiter together.
