Golf Mk4

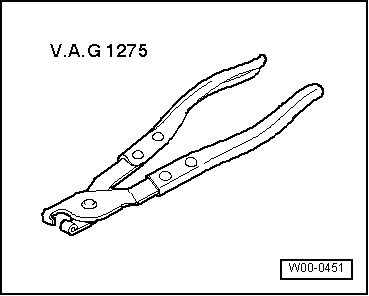

| Installation position of selector mechanism |
| Arrow -A- Gear selection movement |
| Arrow -B- Gate selection movement |
| A - | Gear selector cable |
| B - | Gate selector cable |
| C - | Heat shield |
| q | Remove before removing selector mechanism. |
| 1 - | Gearbox selector lever |
| 2 - | Relay lever |
Note| t | Note radio code for vehicles with coded radio. |
| t | Before working on the selector mechanism, disconnect earth strap from the battery in the engine compartment. |
| t | → Electrical system; Rep. gr.27 |
| t | When reconnecting battery, perform work required after connecting battery → Electrical system; Rep. gr.27. |
| t | Remove air filter housing for work on selector mechanism in engine compartment → Rep. gr.24. |
| t | Remove selector mechanism to renew selector cables → Chapter. |
| t | Do not kink selector cables. |
| I - | Removing and installing gear knob and cover → Chapter |
| II - | Repairing gear lever and selector housing → Chapter |

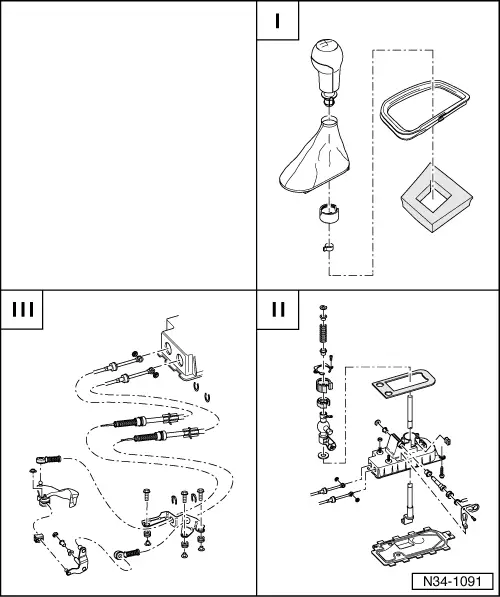

| III - | Assembly overview - removing and installing selector cables → Chapter |
| Removing and installing selector mechanism → Chapter |
| Adjust selector mechanism, gearbox with retaining pin (through gearbox date 18 05 3) → Chapter. |
| Adjusting selector mechanism, gearbox with retaining pin (through gearbox date 19 05 3) → Chapter. |
|
|
|
|
|
