Dismantling and assembling procedure for gearboxes from gearbox date 19 05 3

Removing and installing gearbox housing, selector mechanism, input shaft, output shafts, differential and selector rods

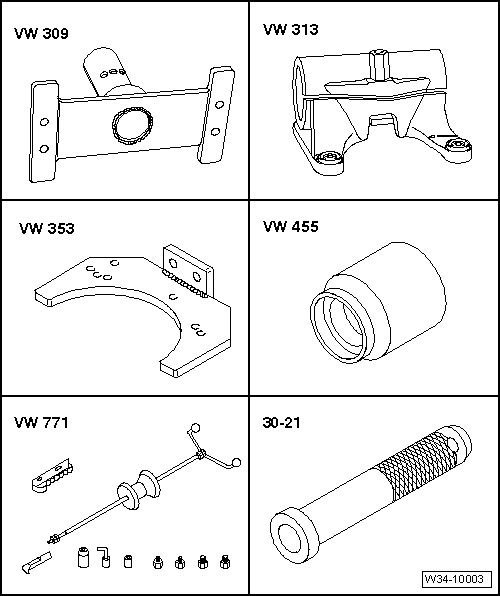

Special tools and workshop equipment required

t	Support plate -VW 309-

t	Support clamp -VW 313-

t	Gearbox support -VW 353-

t	Installing sleeve -VW 455-

t	Multipurpose tool -VW 771-

t	Sleeve -30-21-

t	Support bridge -30 - 211 A-

t	Thrust piece -T10042-

t	Drift -T10168-

t	Thrust piece -T40008-

t	Torque wrench -V.A.G 1331-

t	e.g. hot-air blower -V.A.G 1416-

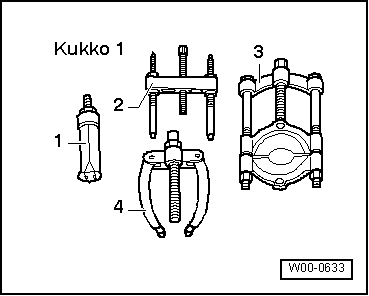

t	Internal puller -1 -Kukko 21/01-

t	Splitter -3 -Kukko 17/0-

t	Counter support -4 -Kukko 22/1-
