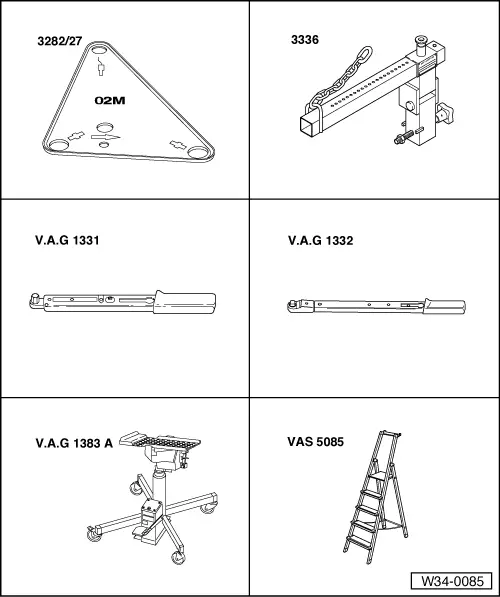

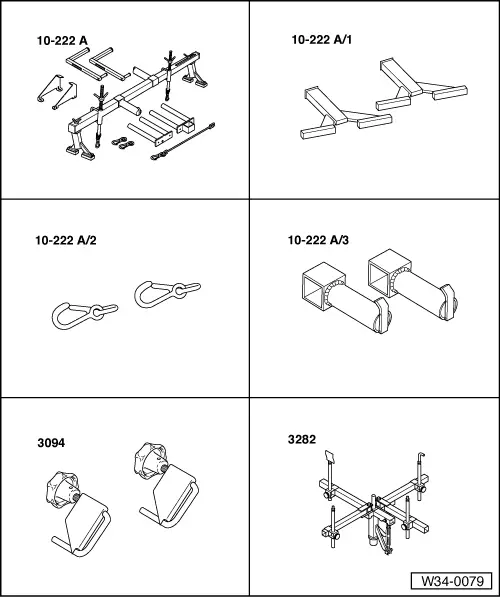

Torque settings

Gearbox to engine

Item	Bolt	Quantity	Nm
1	M12 x 55	2	80
2	M12 x 70	1	80
3 t  With short stud M8 t  Additionally, starter to gearbox	M12 x 165	2	80
4	M10 x 50	2	45
5	M10 x 105	1	45

–  Renew bolts. Items -A- and -B-: dowel sleeves

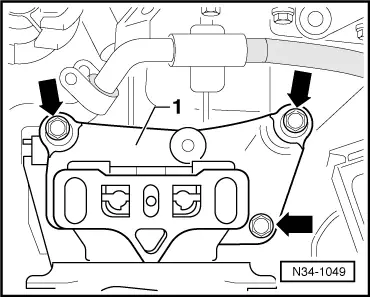

Gearbox bracket -1- to gearbox.

Bolts -arrows-

50 Nm + 90°

–  Renew bolts.

Gearbox to body

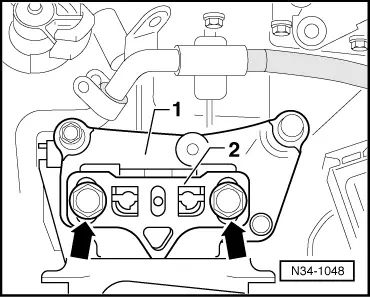

Bolts -arrows-

100 Nm

–  Renew bolts.

Hydraulic line to gearbox		25 Nm
Small flywheel cover plate to intermediate plate on engine		10 Nm
Drive shaft heat shield to bevel box		25 Nm
