Golf Mk4

Adjusting 2nd and 4th gear brake -B2-
Adjusting 2nd and 4th gear brake -B2-

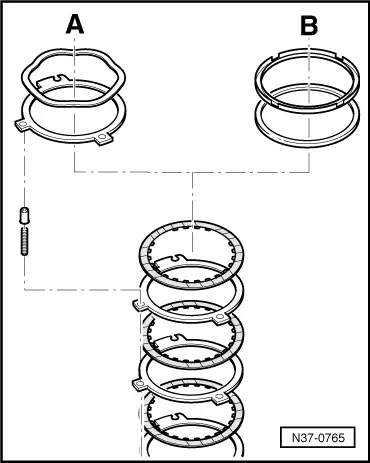

Gearbox with corrugated spring -A- → Chapter
Gearbox with retaining ring -B- → Chapter
  N37-0765

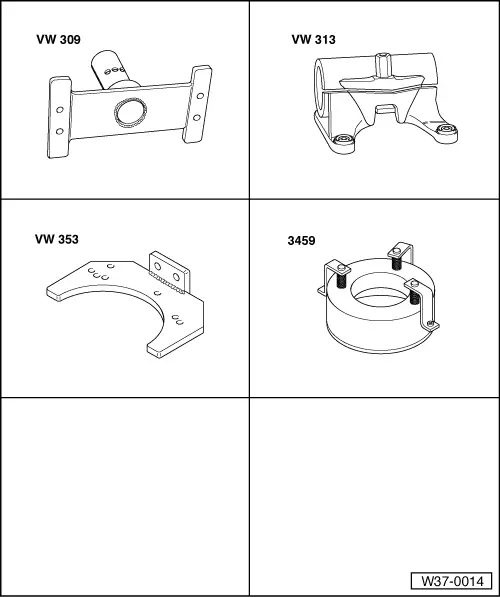

Special tools and workshop equipment required
t  Support plate -VW 309-
t  Support clamp -VW 313-
t  Gearbox support -VW 353-
t  Setting gauge -3459-
t  Depth gauge
t  Straightedge
