Golf Mk4

Removing
Removing
–  Move selector lever to “P” position.

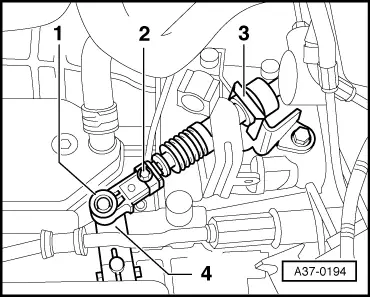

–  Remove securing clip -3- from support bracket.
This securing clip -3- must always be renewed.
–  Pull selector lever cable -1- from selector shaft lever -4-.
–  Raise vehicle.
–  Remove exhaust system clamp and separate exhaust system → Engine, mechanics; Rep. Gr.26.
–  Remove front and rear heat shields for tunnel.
–  Remove lower cover from selector bracket.
  A37-0194

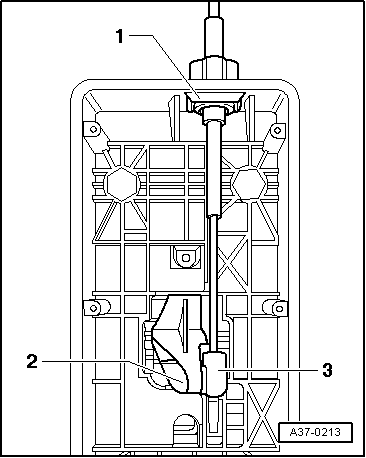

–  Pry selector lever cable -3- off selector lever -2-.
–  Pull out securing clip -1- downwards.
–  Carefully pull selector lever cable out of selector bracket.
–  Do not kink selector lever cable.
  A37-0213
