| t
| Always renew O-rings, seals and gaskets. |
| t
| Before installing a radial shaft seal, coat sealing lips and area between these with sealing grease -G 052 128- and outer circumference with → ATF. |
| t

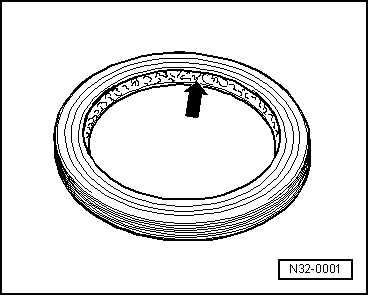

| Open side of oil seal faces oil. |
| t
| After installing, check → ATF level in planetary gearbox or gear oil in final drive and correct level if necessary. |
|
|
|
