Golf Mk4
|
![](/volkswagen/golf-mk4/images/golf-mk4-9764.png)
1 - | Exhaust gas recirculation valve -N18- |
2 - | Throttle valve module -J338- |
q | If renewed, erase learnt values and adapt engine control unit → Vehicle diagnostic tester. |
3 - | Gasket |
q | Renew. |
4 - | Intake connecting pipe |
5 - | Seal |
q | Renew. |
6 - | 10 Nm |
7 - | Connecting pipe |
8 - | 35 Nm |
9 - | Mechanical exhaust gas recirculation valve |
q | Checking → Chapter. |
10 - | Filter |
11 - | Connector |
q | 2-pin |
|
![](/volkswagen/golf-mk4/images/golf-mk4-9765.png)

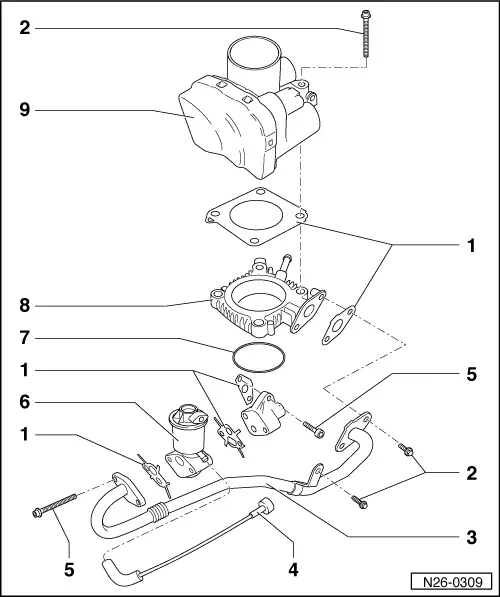

1 - | Gasket |
q | Renew. |
2 - | 10 Nm |
3 - | Connecting pipe |
4 - | Filter |
5 - | 20 Nm |
6 - | Exhaust gas recirculation valve -N18- with exhaust gas recirculation potentiometer -G212- |
q | If renewed, adapt engine control unit to exhaust gas recirculation valve -N18- → Vehicle diagnostic tester. |
q | Valve closed when at rest. |
7 - | Seal |
q | Renew. |
8 - | Intake connecting pipe |
9 - | Throttle valve module -J338- |
q | Clean → Chapter. |
q | If renewed, adapt engine control unit to throttle valve module -J338- → Vehicle diagnostic tester. |
