Removing and Installing Toothed Belt for Golf Mk4 14L and 16L Engines

Removing, installing and tensioning toothed belt

Removing, installing and tensioning toothed belt

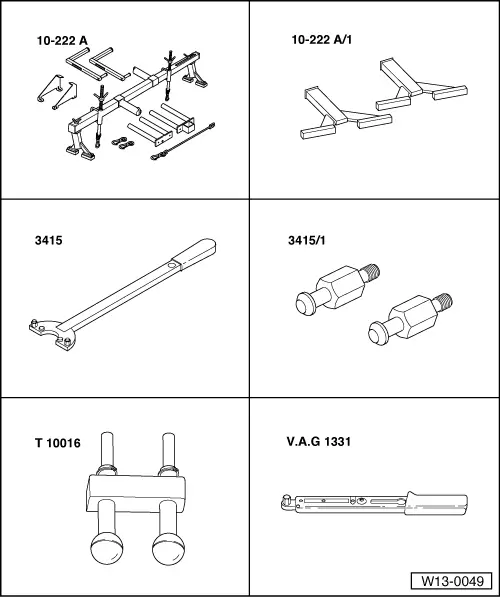

Special tools and workshop equipment required
t  Support bracket -10 - 222 A-
t  Rack -10 - 222 A /1-
t  Counterhold tool -3415-
t  Pins -3415/1-
t  Camshaft lock -T10016-
t  Torque wrench -V.A.G 1331-

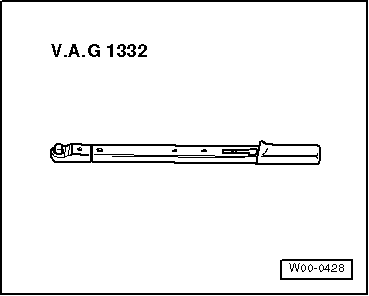

t  Torque wrench -V.A.G 1332-
  W00-0428

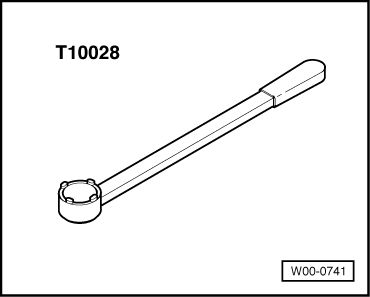

t  Counterhold tool -T10028- (only on ATN, AUS, AZD, BCB)
  W00-0741
