Golf Mk4

4cyl. Injection Engine, (2.0 ltr. Engine) (Mexico)
Removing and installing parts of fuel supply system
Removing and installing parts of fuel supply system

Notes:

  • ◆ Hose connections are secured with either spring-type or clamp-type clips.
  • ◆ Always replace clamp-type clips with spring-type clips.
  • ◆ Fuel hoses of engine must only be secured with spring-type clips. The use of clamp or screw-type clips is not permitted.

W00-1107
  • ◆ → Fuel pump unit VAS 5190 is recommended for emptying fuel tank. Contrary to the operating instructions the draining must not occur via the filler neck in this engine/vehicle, otherwise inner components will be damaged. Empty fuel tank only via the open flange , Removing and installing fuel delivery unit.

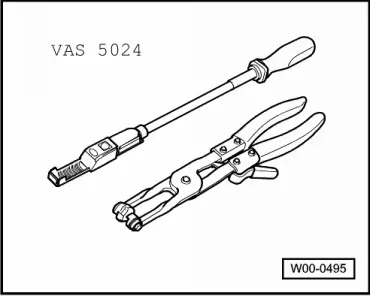

W00-0495
  • ◆ → Assembly tool VAS 5024 or hose clip pliers V.A.G 1921 are recommended for fitting spring-type clips.

Removing and installing fuel tank with attachments and fuel filter => Page 20-3 .

Observe safety precautions=> Page 20-11 .

Observe rules for cleanliness => Page 20-13 .

Servicing accelerator mechanism => Page 20-48

Servicing parts of the activated charcoal canister system => page 20-55 .
