Removing and installing parking aid warning buzzer, Bora

Removing and installing parking aid warning buzzer, Bora
Removing:
–  Switch off ignition and all electrical consumers and remove ignition key.
–  Remove rear shelf → General body repairs, interior; Rep. Gr.70

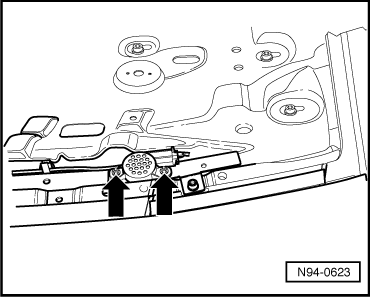

–  Remove securing nuts -arrows-.
–  Unplug multi-pin connector and remove parking aid warning buzzer.
Installing:
Install in reverse order of removal.
  N94-0623
