Installing wiper motor in wiper frame > < Removing wiper frame with linkage and wiper motor

Golf Mk4

Removing wiper motor from wiper frame

Removing wiper motor from wiper frame
–  Lever linkage -1- off crank arm of wiper motor using release lever -80-200-.
–  Remove securing nut -2- and pull crank arm off wiper motor shaft.
–  Remove securing bolts -3- for wiper motor.
–  Remove wiper motor from wiper frame.

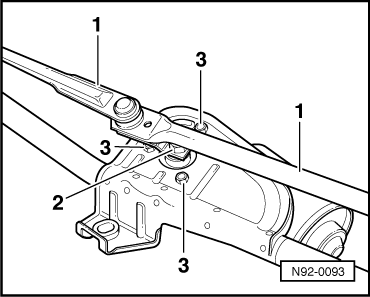

  N92-0093

Installing wiper motor in wiper frame > < Removing wiper frame with linkage and wiper motor
