Golf Mk5

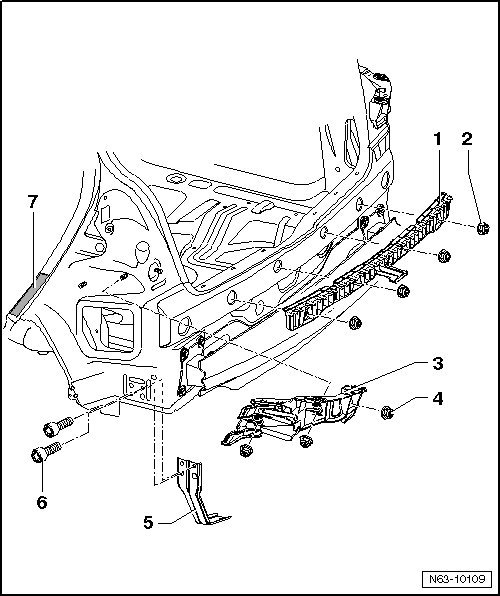

| Rear bumper substructure |
| 1 - | Securing strip |
| 2 - | Hexagon nut |
| q | Qty. 4 |
| q | 2 Nm |
| 3 - | Guide |
| q | Left and right |
| 4 - | Hexagon nut |
| q | Qty. 3 per side |
| q | 2 Nm |
| 5 - | Retaining bracket |
| q | Not installed on all models |
| 6 - | Bolt |
| q | Qty. 2 |
| q | 5 Nm |
| 7 - | Foil |
| q | Left and right |
| q | Self-adhesive |
