Golf Mk5

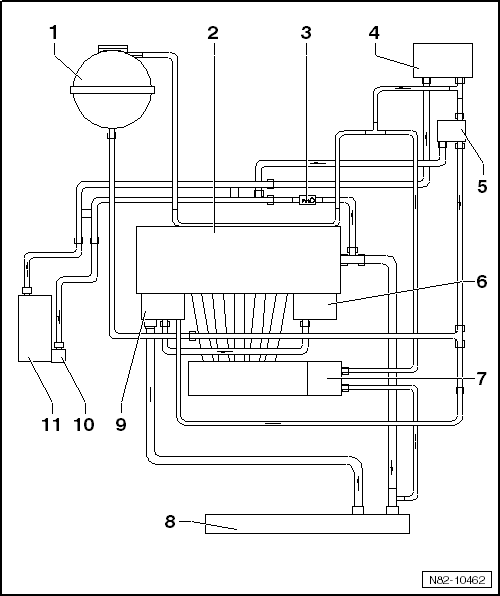

Connection diagram for coolant hoses in vehicles with auxiliary heating, engine codes BGB, BGQ, CBTA, CBUA |
1 - | Coolant expansion tank |
2 - | Cylinder head and cylinder block |
3 - | Non-return valve |
4 - | Heat exchanger for heater |
5 - | 4/2-way valve with thermostat |
6 - | Engine oil cooler |
7 - | Intake manifold |
8 - | Radiator |
9 - | Thermostat housing |
10 - | Auxiliary heater Thermo Top V |
q | Removing and installing → Chapter |
11 - | Circulation pump -V55- |
q | Removing and installing → Chapter |
