Golf Mk5

Checking condensation water drainage hose on heater and air conditioner unit

Checking condensation water drainage hose on heater and air conditioner unit
–  Remove footwell cover on front passenger side .
  Note

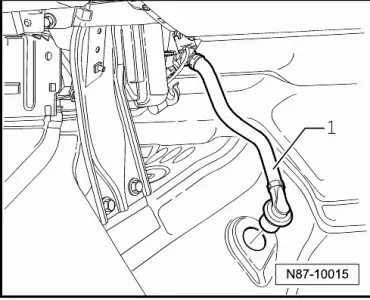

t  It must be possible to push condensation drain hose -1- onto the heater and air conditioning unit connection without tension.
t  The condensate drain hose must be fitted securely to the condensate drain connection of the heater and air conditioner unit.
  N87-10015
