Removing left vent temperature senderG150 and right vent temperature senderG151
Removing left vent temperature sender -G150- and right vent temperature sender -G151-
  Note
Removal of senders on both sides is identical, but one is a mirror image of the other.

–  Remove right or left dash panel cover → General body repairs, interior; Rep. gr.70.

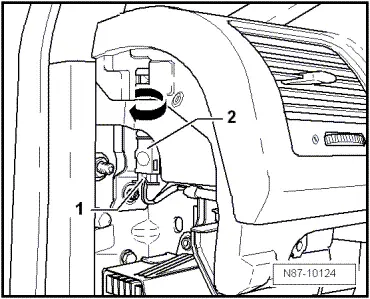

–  Pull connector -1- off vent temperature sender -2-.
–  Turn vent temperature sender -2- 90° in -direction of arrow- and remove from dash panel.
  N87-10124
