Draining gear oil
Draining gear oil
Draining gear oil
Use a clean container with a scale and a 3-litre capacity to catch the oil which runs out.
l
Selector shaft is locked in place

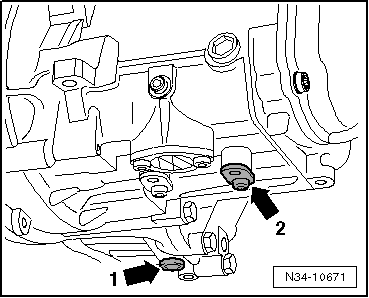

→ Fig.
–
Drain gear oil by removing oil drain plug
-arrow 1-
and then pivot pin
-arrow 2-
.
–
Install pivot pin
-arrow 2-
with a new O-ring
→ Item
.
–
Screw in oil drain plug
-arrow 1-
→ Item
.
–
Now turn angled rod
-A-
back to original position
-direction of arrow-
so that selector shaft can move again.
