Volkswagen Workshop Service and Repair Manuals > Golf Mk5 > Power transmission | 5-speed manual gearbox 0AF | Clutch, control | Repairing clutch mechanism | Removing and installing clutch position senderG476

Installing

Install in reverse order of removal. During this step, observe the following:

Note

t	Renew hose clips.

t	Allocate all components according to → Electronic parts catalogue „ETKA“.

If the pipe/hose line or plastic line was removed:

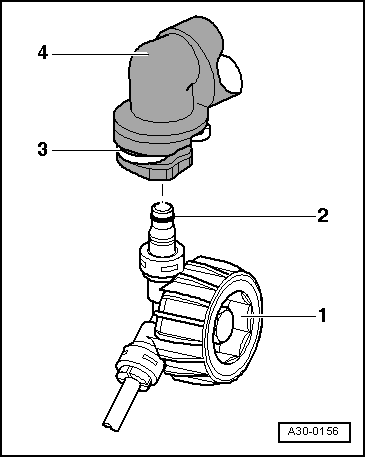

–	Push pipe/hose line or plastic line -1- with seal -2- onto connection of master cylinder -4- until securing clip -3- engages audibly.

–	Test line by tugging on it.

–	After removing hose clamp -3094-, return supply hose to its original shape, if necessary.

–	Bleed clutch system → Chapter.

LHD

–	Install battery → Electrical system; Rep. gr.27.
