Volkswagen Workshop Service and Repair Manuals

Repairing selector unit Special tools and workshop equipment required

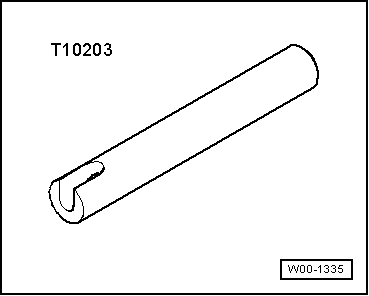

t  Tube -T10203-

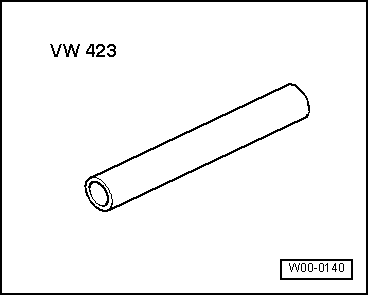

t  Tube -VW 423-

t  Torque wrench -V.A.G 1331-

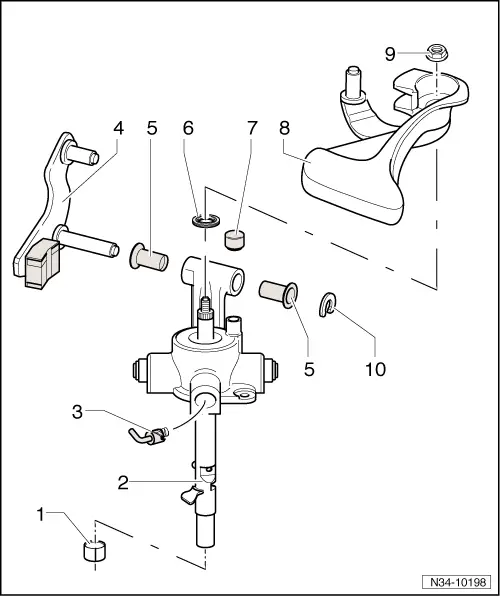

1 -

Sleeve

q	For selector shaft

q	Driving out → Fig.

q	Driving in → Fig.

2 -	Selector shaft with selector shaft cover

q	Renew together

3 -	Angled rod

q	For adjusting selector mechanism

q	Removing → Fig.

q	Driving in → Fig.

4 -	Relay lever

q	Installation position → Fig.

q	From 05.07, plastic relay lever → Chapter

5 -	Bearing bush

q	Not required for plastic relay lever

6 -

Seal

q	Lever out with a screwdriver

q	Installing → Fig.

7 -

Cap

q	For gearbox breather

8 -	Gearbox selector lever

q	Install so that master spline aligns with selector shaft

q	Can be renewed with the selector mechanism installed

q	Installation position → Fig.

9 -	Hexagon nut, 23 Nm

q	Always renew

10 -	Securing clip

q	Always renew

q	Not required for plastic relay lever

Removing angled rod -A- from selector shaft cover –  Remove outer part of angled rod. –  Then carefully lever out angled rod using a screwdriver.

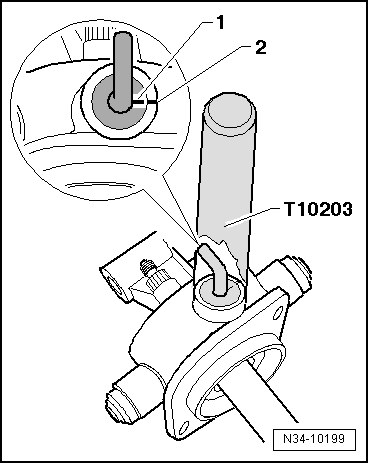

Drive angled rod -A- into selector shaft cover Installation position: Marking -1- aligns with marking -2- on selector cover.

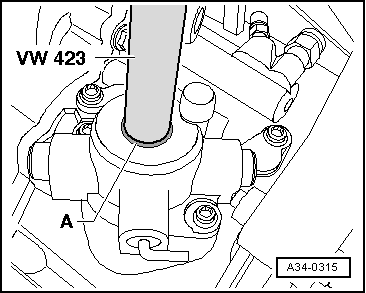

Inserting oil seal -A- onto stop
