| Install in reverse order of removal. During this step, observe the following: |
| –
| Clean the two magnets in recesses of oil pan. Ensure that magnets are seated correctly in pan. |
| –

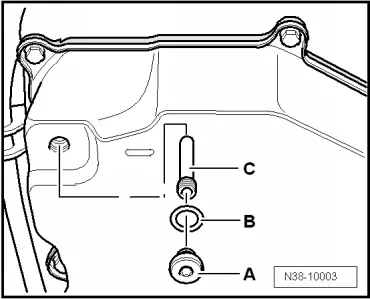

| Check that seal is undamaged and all spacer sleeves (qty. 8) are present. |
| –
| Fit oil sump with seal, taking care not to pinch any wires. |
| –
| Ensure that oil pan gasket is seated correctly. |
|
|
|
