Golf Mk5

Electrical and electronic components and their locations DSG
Electrical and electronic components and their locations → DSG
The electrical components are located in the gearbox.
Only the selector lever sensors control unit -J587- and the selector lever lock solenoid -N110- are located on the selector lever.

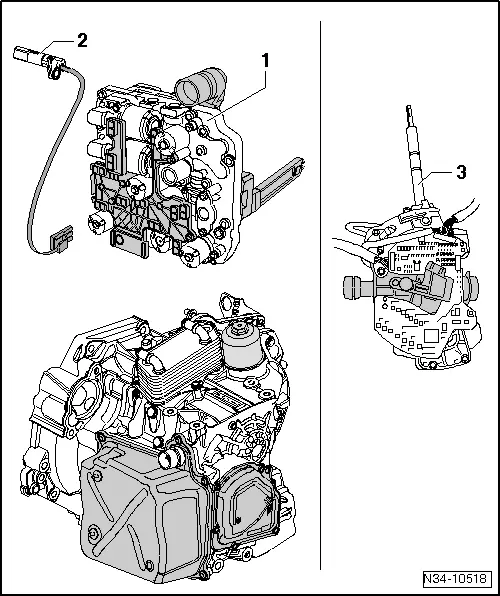

1 - Mechatronic unit for dual clutch gearbox -J743-
q   Behind »large« sheet metal cover
q   Removing and installing with gearbox installed → Chapter.
q   Removing and installing with gearbox removed → Chapter
2 - Gearbox input speed sender -G182- and oil temperature sender in multi-plate clutch -G509-
q   Before sender can be removed, mechatronic unit for dual clutch gearbox -J743- must be removed → Chapter.
3 - Selector lever -E313-
q   For information about selector lever, see → Chapter Selector mechanism
