Golf Mk5
| Repairing selector forks |

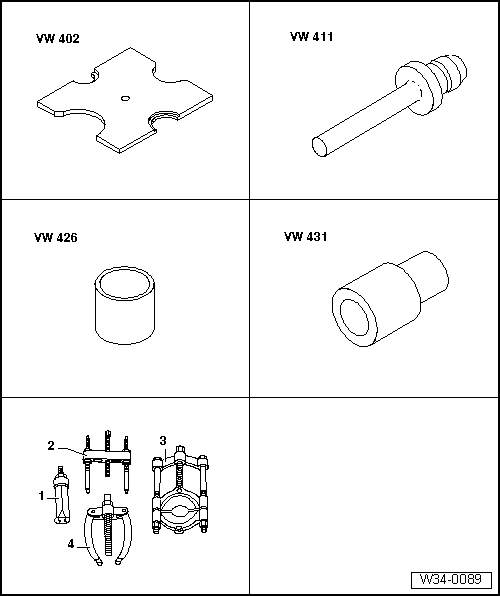

| Special tools and workshop equipment required |
| t | Pressure plate -VW 402- |
| t | Press tool -VW 411- |
| t | Tube -VW 426- |
| t | Thrust piece -VW 431- |
| t | -1-Internal puller -Kukko 21/3- |
| t | -4-Counter support -Kukko 22/1- |

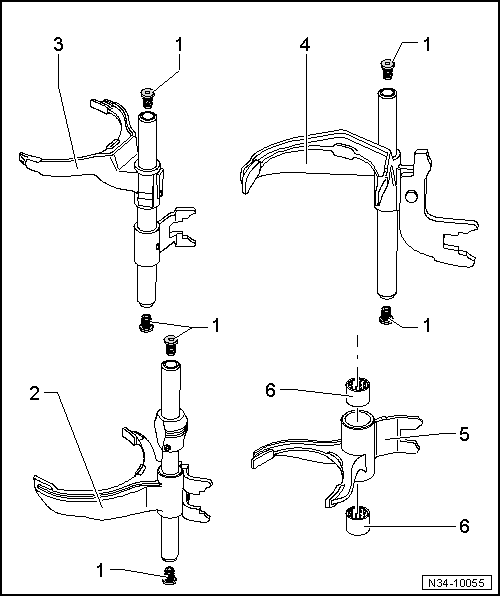

| 1 - | Rubber dampers |
| q | Can be removed from and inserted in selector rod by hand |
| 2 - | Selector rod with selector fork for 1st and 2nd gears |
| 3 - | Selector rod with selector fork for 3rd and 4th gears |
| 4 - | Selector rod with selector fork for 5th and 6th gears |
| q | Installed on some gearboxes in addition to mounting of reverse gear selector fork |
| 5 - | Selector fork for reverse gear |
| q | Is mounted on shaft for reverse gear selector fork → Fig. |
| q | From gearbox manufacture date 06 03 6, ball sleeve → Item is discontinued |
| q | Gradually discontinued |
| q | Reverse gear selector fork is modified |
| q | If shaft for reverse gear selector fork is not present, mounting on selector rod for selector fork for 5th and 6th gear → Fig. |
| q | Distinguishing between reverse gear selector forks → Fig. |
| q | Allocation of components via → Electronic parts catalogue (ETKA) |
| 6 - | Ball sleeve |

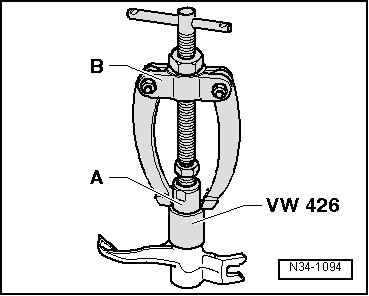

| q | Pulling out → Fig. |

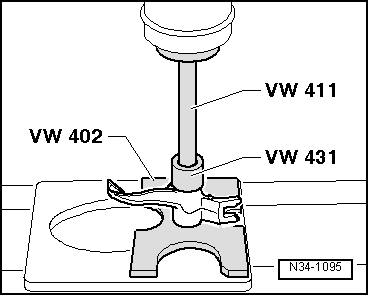

| q | Pressing in → Fig. |
| q | From gearbox manufacture date 06 03 6, ball sleeve is discontinued |
| q | Gradually discontinued |
|
|
| Dim. „a“ mm | Selector fork for reverse gear | Mounting |
| 24 | With ball sleeve | On reverse gear selector fork shaft → Fig. |
| 18 | Without ball sleeve | |
| 15 | Without ball sleeve | On selector rod with selector fork for 5th and 6th gears → Fig. |
|
|
|
|
