Golf Mk5
Note
|

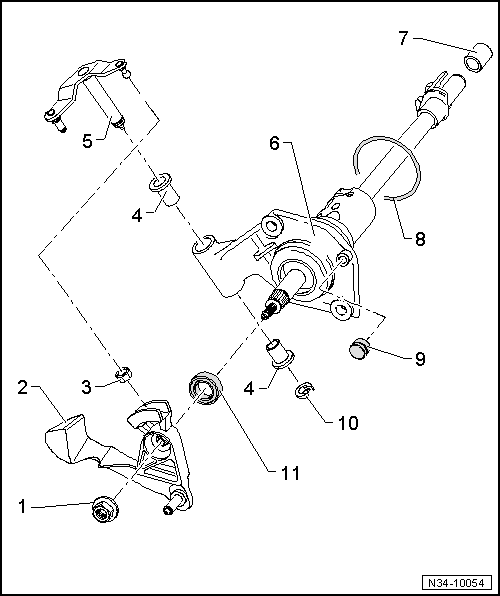

| 1 - | Hexagon nut |
| q | Removing and installing → Item |
| 2 - | Gearbox selector lever |
| q | Can be renewed with the selector mechanism installed |
| q | Installation position → Fig. |
| q | Installing → Fig. |
| q | After installing, adjust selector mechanism, → Chapter |
| 3 - | Shoe |
| q | Clip into relay lever. |
| 4 - | Bearing bush |
| q | Not required for plastic relay lever |
| 5 - | Relay lever |
| q | Installation position → Fig. |
| q | After installing, adjust selector mechanism, → Chapter |
| q | From 03.07, plastic relay lever → Chapter |
| 6 - | Selector unit |
| q | Consists of selector shaft and selector shaft cover |
| q | Components cannot be separated from each other |
| q | Can be removed and installed with gearbox installed |
| q | Selector shaft in conjunction with modified mounting of reverse gear selector fork → Item |
| q | Allocation of selector shafts → Fig. |
| 7 - | Bearing bush |
| q | For selector shaft |
| q | Removing and installing → Item |
| 8 - | O-ring |
| q | Insert in peripheral groove of selector mechanism cover |
| q | Coat with gear oil when installing |
| q | Always renew |
| 9 - | Cap |
| q | For gearbox breather |
| 10 - | Circlip |
| q | For relay lever |
| q | Not required for plastic relay lever |
| 11 - | Seal for selector shaft |
| q | Renewing → Chapter |
|
|

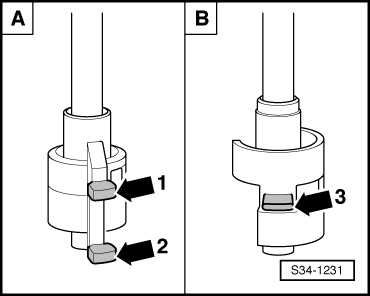

| Number of selector fingers on selector shaft | Reverse gear selector fork mounting |
| Fig. -A- = 2 selector fingers -arrow 1- and -arrow 2- | On reverse gear selector fork shaft → Fig. |
| Fig. -B- = 1 selector finger -arrow 3- | On selector rod with selector fork for 5th and 6th gears → Fig. |
