Golf Mk5
| Dismantling and assembling procedure |
| Removing and installing gearbox housing cover, clutch housing, selector shaft with selector mechanism cover, input shaft, output shaft, differential and selector mechanism. |
| Special tools and workshop equipment required |
| t | Support clamp -VW 313- |
| t | Pressure plate -VW 401- |
| t | Pressure plate -VW 402- |
| t | Press tool -VW 412- |
| t | Adapter -T10235- |
| t | Press tool -VW 407- |
| t | Tube -VW 418 A- |
| t | Thrust piece -T10080- |
| t | Thrust block -T10083- |
| t | Washer -T10083/1- |
| t | Drip tray -V.A.G 1306- |
| t | Gearbox for 1.6 l engine |
| t | Thrust pad -3074- |
| t | Gearbox for 1.4 l engine |

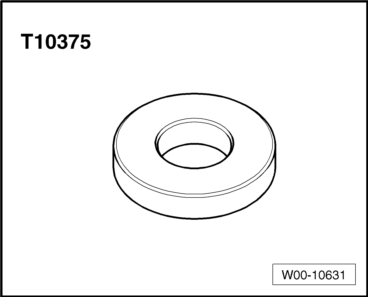

| t | Thrust pad -T10375- |
|
| t | Torque wrench -V.A.G 1331- |
| t | -2-Puller -Kukko 18/1- |
| t | -3-Splitter -Kukko 17/1- |
| t | -1-Three arm puller -Kukko 30/1- |
| t | -3-Two arm puller -Kukko 204/2- |
| t | Hexagon socket head bolts M8 x 15 |
| t | Sealant -AMV 188 200 03- |
