Removing and installing fan support with fans
Removing and installing fan support with fans
Special tools and workshop equipment required

t  Torque wrench -V.A.G 1331-
Removing
–  Remove noise insulation tray. → General body repairs, exterior; Rep. Gr.50.
–  Remove intake air duct from air filter → Chapter.
  W00-0427

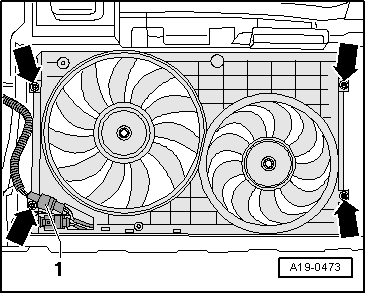

–  Separate connector -1- and remove fan support securing bolts -arrows-.
–  Remove fan support with fans downwards.
  A19-0473

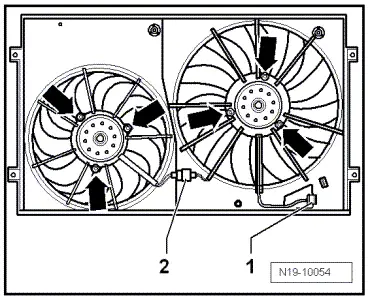

–  Separate connection -2- and free wiring.
–  Unclip connector -1- from fan support and free wiring.
–  Remove securing bolts -arrows- and remove fans.
Installing
Installation is carried out in the reverse order. When installing, note the following:
Torque settings
  N19-10054
ComponentNm
Radiator fans to fan support10
Fan support to radiator5
