Draining

WARNING

Hot steam may escape when expansion tank is opened. Place rag over cap and open with caution.

–	Open cap on coolant expansion tank.

–	Remove noise insulation tray → General body repairs, exterior; Rep. Gr.50.

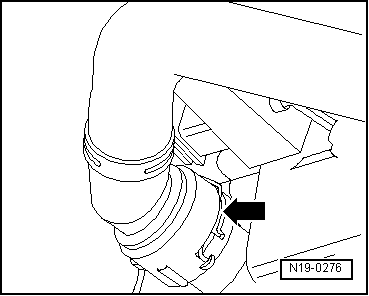

–	Pull off bottom coolant hose retaining clip -arrow- and remove coolant hose from quick-release connection of radiator.

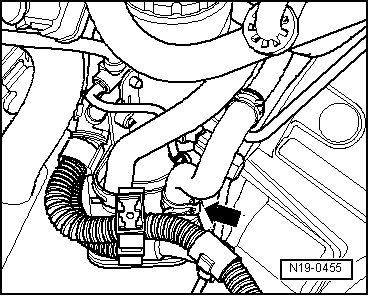

–	To drain coolant from engine, also remove coolant hose from oil cooler -arrow-.

Note

Please observe requirements for disposal.
