Golf Mk5

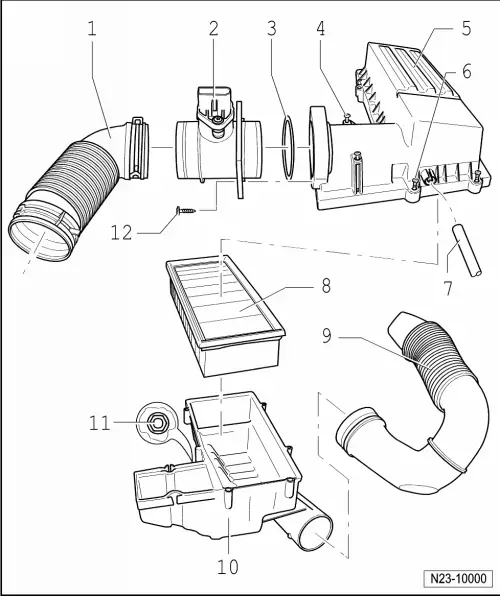

| Assembly overview - air filter |
| 1 - | Intake hose |
| q | To turbocharger. |
| 2 - | Air mass meter -G70- |
| 3 - | O-ring |
| q | Renew if damaged. |
| 4 - | 8 Nm |
| 5 - | Upper part of air filter |
| 6 - | 8 Nm |
| 7 - | Vacuum hose |
| q | To solenoid valve block |
| 8 - | Filter element |
| 9 - | Air duct |
| q | To lock carrier. |
| 10 - | Lower part of air filter |
| 11 - | 10 Nm |
