Golf Mk5
| Assembly overview |
| 1 - | Cable guide |
| q | Bolt to camshaft housing with 8 Nm torque. |
| 2 - | 10 Nm |
| 3 - | 10 Nm + turn 90° further |
| q | Renew. |
| q | Tighten from inside outwards. |
| 4 - | 8 Nm |
| 5 - | To air filter. |
| 6 - | Hall sender -G40- |
| 7 - | O-ring |
| q | Renew if damaged. |
| 8 - | Bracket |
| 9 - | Stud, 6 Nm |
| q | For air filter |
| 10 - | Cylinder head bolt |
| q | Renew. |
| q | Follow installation instructions and sequence when loosening and tightening → Chapter. |
| 11 - | Roller rocker finger |
| q | Check roller bearing for ease of movement. |
| q | Oil contact surface. |
| q | When installing, secure to supporting element using securing clip. |
| 12 - | Support element |
| q | Do not interchange. |
| q | With hydraulic valve clearance compensation. |
| q | Oil contact surface. |
| 13 - | Dowel pins |
| 14 - | Oil pressure switch -F1-, 25 Nm |
| q | Check → Chapter. |
| q | If seal is leaking, nip open and renew. |
| 15 - | Cylinder head |
| q | Removing and installing → Chapter. |

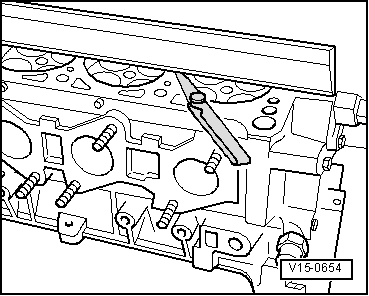

| q | Check for distortion → Fig.. |
| q | Sealing surfaces to camshaft housing must be oil and grease free. |
| q | After renewing, renew entire coolant. |
| 16 - | Cylinder head gasket |
| q | Renew. |
| q | Metal gasket. |
| q | After renewing, renew entire coolant. |
| 17 - | Guide pins |
| q | Specified torque: 20 Nm |
| 18 - | Lifting eye |
| 19 - | 20 Nm |
| 20 - | Camshaft housing |
| q | Removing and installing → Chapter. |
| q | Remove sealant residue. |
| q | Carefully clean sealing surfaces. They must be oil and grease free. |
| q | Coat with D 154,103 A1 before fitting. |
| q | When installing, fit vertically from above onto studs and dowel pins. |
| 21 - | Bucket tappet |
| q | Renew. |
| q | Oil contact surface. |
| 22 - | O-ring |
| q | Renew. |
| q | Moisten with oil before inserting. |
| 23 - | High-pressure pump |
| q | For fuel supply. |
| q | With fuel pressure regulating valve -N276-. |
| q | Removing and installing (engine codes BAG, BKG) → Chapter |
| q | Removing and installing (engine codes BLF, BLN, BLP) → Chapter |
|
|
