Golf Mk5

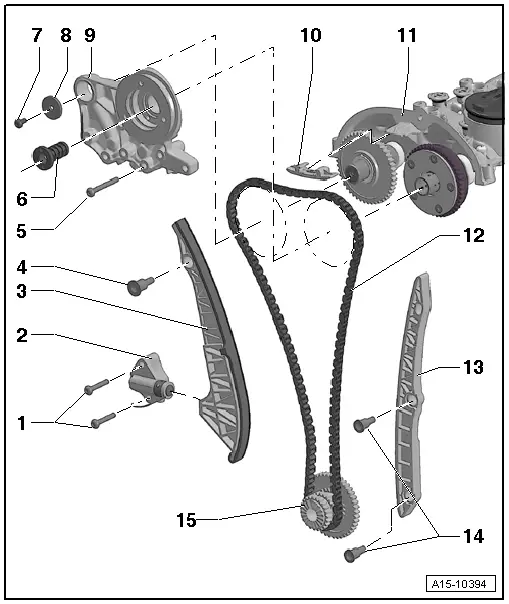

| Camshaft timing chain - exploded view |
| 1 - | Bolt |
| q | 9 Nm |
| 2 - | Chain tensioner |
| q | Exerts spring pressure |
| q | Depending on model, secure with locking pin -T40011- or locking pin -T40267-. |
| 3 - | Tensioning rail for timing chain |
| 4 - | Guide pins |
| q | 20 Nm |
| 5 - | Bolt |
| q | 9 Nm |
| 6 - | Timing valve |
| q | Left-hand thread. |
| q | 35 Nm |
| q | Remove with assembly tool -T10352- |
| q | Engine codes CCZA, CCZB, CCZC, CCZD, CDAA, CDAB: use assembly tool -T10352/1- to remove |
| 7 - | Bolt |
| q | Renew. |
| q | M6: 8 Nm + turn 90° further |
| q | M8: 20 Nm + turn 90° further. |
| 8 - | Washer |
| 9 - | Bearing saddle |
| 10 - | Guide rail for camshaft timing chain |
| 11 - | Camshaft housing |
| 12 - | Camshaft timing chain |
| q | Before removing, mark running direction with paint. |
| q | Removing and installing → Chapter |
| 13 - | Guide rail for camshaft timing chain |
| 14 - | Guide pins |
| q | 20 Nm |
| 15 - | Chain sprocket |
| q | Crankshaft |

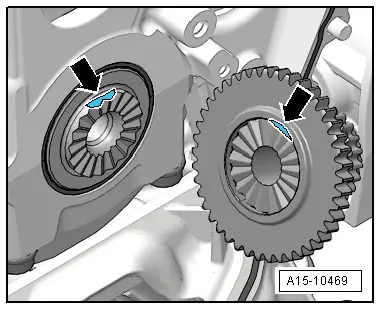

| q | Installation position → Fig.. |
|
|
