Golf Mk5

Removing and installing inlet camshaft control valve 1N205
Removing and installing inlet camshaft control valve 1 -N205-

–  If fitted, remove charge air duct to sound generator → Chapter.

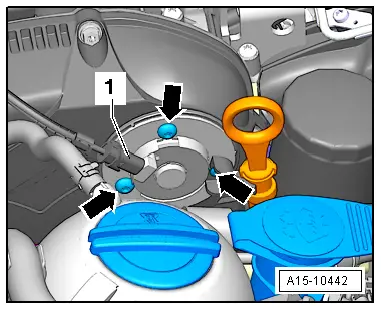

–  Detach connector from inlet camshaft control valve 1 -N205--1-.
–  Unscrew bolts -arrows- and remove inlet camshaft control valve 1 -N205-.
Installing
l  Specified torque → Chapter.
Installation is carried out in the reverse order; note the following:
–  Lubricate seal and O-ring with engine oil.
  A15-10442
