Removing and installing injectors

Special tools and workshop equipment required

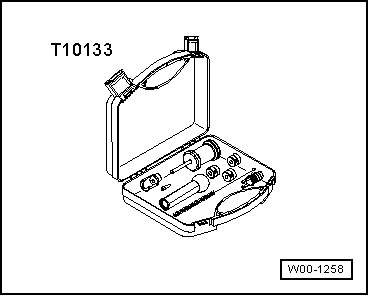

t	Puller -T10133-

Injector components

1 -	Radial compensation, renew if damaged.

2 -	Combustion chamber seal (Teflon seal), renew. When installed, ring must not be greased or treated with any other lubricant.

3 -	Groove in injector.

4 -	Support washer (renew).

5 -	O-ring (renew; to install, lightly lubricate with clean engine oil.)

6 -	Support ring.
