Removing and installing front left vehicle level senderG78

Removing and installing front left vehicle level sender -G78-

Special tools and workshop equipment required

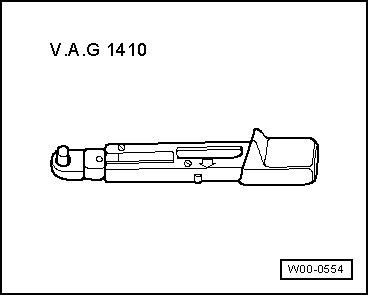

t	Torque wrench -V.A.G 1410-

Removing

Note

To remove front left vehicle level sender -G78-, steering must be turned to right lock to ensure clearance between suspension link and anti-roll bar.

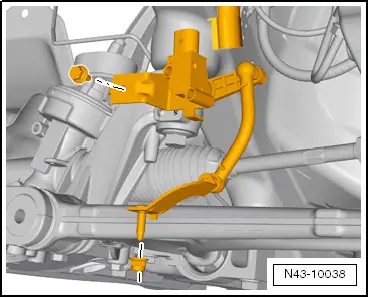

–	Separate connector.

–	Remove bolt and nut.

–	Take out vehicle level sender.

Installing

Install in reverse order. Note the following points:

Note

t	Lever on vehicle level sender must face towards outside of vehicle.

t	Thread of vehicle level sender must be screwed into front hole in suspension link. Lug of bracket for vehicle level sender must engage in rear hole in order to guarantee correct installation position.

–	Perform basic setting of headlights → "Guided fault-finding" function of vehicle diagnostic, testing and information system VAS 5051

Specified torques

Component

Specified torque

Bolt to subframe

9 Nm

Nut

t	Use new nut

9 Nm
