Golf Mk5

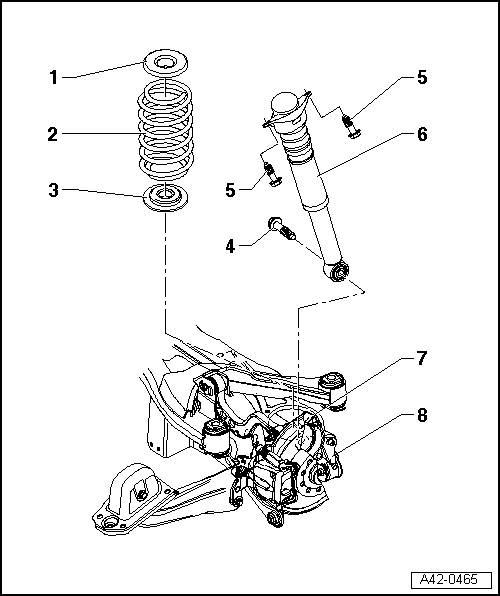

| Assembly overview: shock absorber, coil spring (four-wheel drive, subframe made from aluminium and wheel bearing housing made from cast steel) |
| 1 - | Upper spring seat |
| 2 - | Coil spring |
| q | Note different running gear versions |
| q | Removing and installing → Chapter. |
| 3 - | Lower spring seat |
| q | End of coil spring turned to stop |
| 4 - | Bolt |
| q | M14 x 1.5 x 70 |
| q | 180 Nm |
| 5 - | Bolt |
| q | 50 Nm + 45° further |
| 6 - | Shock absorber |
| q | Removing and installing → Chapter. |
| q | Repairing → Chapter |
| q | Note different running gear versions → Chapter, vehicle data sticker. |
| 7 - | Lower transverse link |
| q | Removing and installing → Chapter. |
| 8 - | Wheel bearing housing |
| q | Removing and installing → Chapter. |
