Changing from wheel housing bearing made from cast steel to wheel bearing housing made from aluminium > < Removing and installing track rod

Golf Mk5

Assembly overview: wheel bearing housing, trailing link (four-wheel drive, subframe made from aluminium and wheel bearing housing made from cast steel)

Assembly overview: wheel bearing housing, trailing link (four-wheel drive, subframe made from aluminium and wheel bearing housing made from cast steel)
-Arrow- indicates direction of travel.
1 - Bolt
q   50 Nm + 45° further
q   Always renew after removing.
2 - Mounting bracket
3 - Bolt
q   M12 x 1.5 x 80
q   90 Nm + 90° further
q   Always renew after removing.
4 - Coupling rod
5 - Bolt
q   90 Nm + 90° further
q   Always renew after removing.
q   Only wheel bearing housings made from aluminium are available as replacement parts. Therefore, certain parts have to be exchanged and/or installed in addition when replacing → Chapter
6 - Trailing arm
q   Removing and installing → Chapter.
q   Repairing → Chapter
7 - Drive shaft
q   Assembly overview → Chapter.
q   Removing and installing → Chapter.
8 - Bolt
q   M12 x 1.5 x 45
q   70 Nm + 90° further
q   Always renew after removing.
9 - Wheel bearing housing
q   Removing and installing → Chapter.
q   Installing with wheel bearing housings made from aluminium is permissible → Electronic parts catalogue „ETKA“
q   Only wheel bearing housings made from aluminium are available as replacement parts. Therefore, certain parts have to be exchanged and/or installed in addition when replacing → Chapter
10 - Rear speed sensor -G44/G46-
11 - Bolt
q   9 Nm
12 - Bonded rubber bush
q   Renewing → Chapter.
13 - Nut
q   45 Nm
q   Self-locking
q   Always renew after removing.
14 - Cross-head screw
q   4 Nm
15 - Brake disc
16 - Bolt
q   Various versions
q   Allocation → Electronic parts catalogue „ETKA“
q   Hexagon bolt, 180 Nm and turn +180° further
q   Loosening and tightening hexagon bolt for drive shaft → Chapter
  WARNING
t  There are two versions of the twelve-point head bolt, with and without ribs Distinguishing feature → Fig..
t  When installing a twelve-point bolt, always note which version of the twelve-point bolt is installed
t  The respective specified torque must also be used.
t  The specified torque for twelve-point bolts »with« ribbing is 70 Nm + 90° when loosening and tightening → Chapter.
t  The specified torque for twelve-point bolts »without« ribbing is 200 Nm + 180° when loosening and tightening → Chapter.
17 - Wheel hub with wheel bearing
q   ABS sensor ring is installed in wheel bearing.
q   Removing and installing → Chapter.
The wheel bearing and wheel hub are assembled in one housing.
This wheel bearing/wheel hub unit is maintenance free and has no play. Adjustments and repairs are not possible!
18 - Bolt
q   10 Nm
q   Only wheel bearing housings made from aluminium are available as replacement parts. Therefore, certain parts have to be exchanged and/or installed in addition when replacing → Chapter
19 - Splash plate
q   Only wheel bearing housings made from aluminium are available as replacement parts. Therefore, certain parts have to be exchanged and/or installed in addition when replacing → Chapter

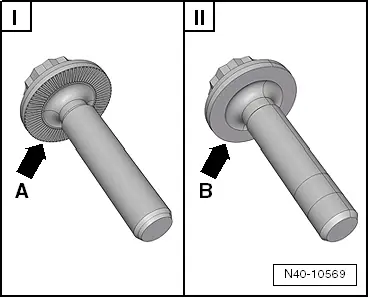

Distinguishing features between twelve-point head bolt with ribbing and twelve-point head bolt without ribbing.
The twelve-point head bolt are only distinguishable on the contact surfaces -arrow A- and -arrow B-.
I - Twelve-point head bolt with ribbing -arrow A-
II - Twelve-point head bolt without ribbing -arrow B-
  N40-10569
