Golf Mk5

Removing
Removing
  Note
The CD changer is installed under the hinged centre armrest.
Before beginning dismantling work, perform the following steps:
–  Switch off ignition and all electrical consumers and remove ignition key.
–  Open hinged centre armrest completely.
–  Remove any CDs which may be in CD changer → Operating Manual.

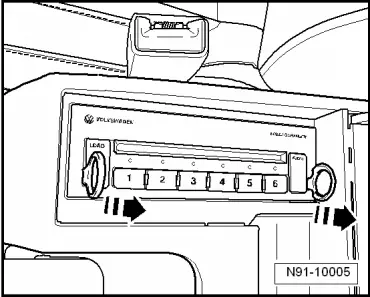

–  Push radio release tools -3316- in slots provided for this purpose on the left and right of the CD changer until they can be heard to engage.

–  Using radio release tools, pull out CD changer -arrows-.
  N91-10005
–  Release connector at points indicated by -arrows- and pull it off.
  N91-10004
–  Press locking clip -arrow- while pulling radio release tools out of removed unit.
  N91-10003
