Golf Mk5

Bulb for mirror turn signal and entry light in exterior mirror
Bulb for mirror turn signal and entry light in exterior mirror
  Note
Additional information:
→ No.318
→ No.319
→ Current flow diagrams, Electrical fault finding and Fitting locations
General description:
Bulbs for mirror repeater turn signals (side repeater turn signal) are integrated in the exterior mirror housings.

In addition, there is an entry light in each exterior mirror housing which illuminates the entry area around the open driver or front passenger door in the dark.

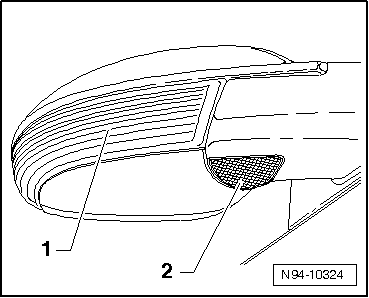

1 - Driver side turn signal repeater bulb -L131- or front passenger side turn signal repeater bulb -L132-
2 - Driver side entry light in exterior mirror -W52- or front passenger side entry light in exterior mirror -W53-
Fault detection and fault display:
The onboard supply control unit has a self-diagnostic function, which makes fault finding easier.
For fault finding, use vehicle diagnosis, testing and information system -VAS 5051A- in „Guided fault finding“ mode.
  N94-10324
