Repairing headlight retaining tabs
Repairing headlight retaining tabs

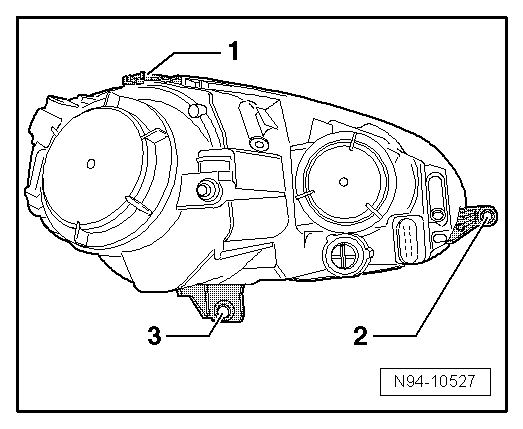

If the upper headlight retaining tab -1-, the outer headlight retaining tab -2- or the lower headlight retaining tab -3- is damaged or has broken off, it can be replaced by installing the repair kit. There is no need to renew the entire headlight.
  Note
t  Check that there is no further damage to the headlight that would make installation of the repair kit unnecessary.
t  Two different repair kits are available for the left and right headlights → ETKA (electronic parts catalogue).
t  Each repair kit includes the upper, the outer and the lower headlight retaining tabs, four securing screws, a panel nut (already fitted on the upper retaining tab), adjustment bushes (one each already fitted on the outer and lower retaining tabs).
–  Repairing upper retaining tab → Chapter.
–  Repairing outer retaining tab → Chapter
–  Repairing lower retaining tab → Chapter.
  N94-10527
