Golf L4-1588cc 1.6L DSL SOHC (1987)

Page 5
background image

Wiring Diagram Layout

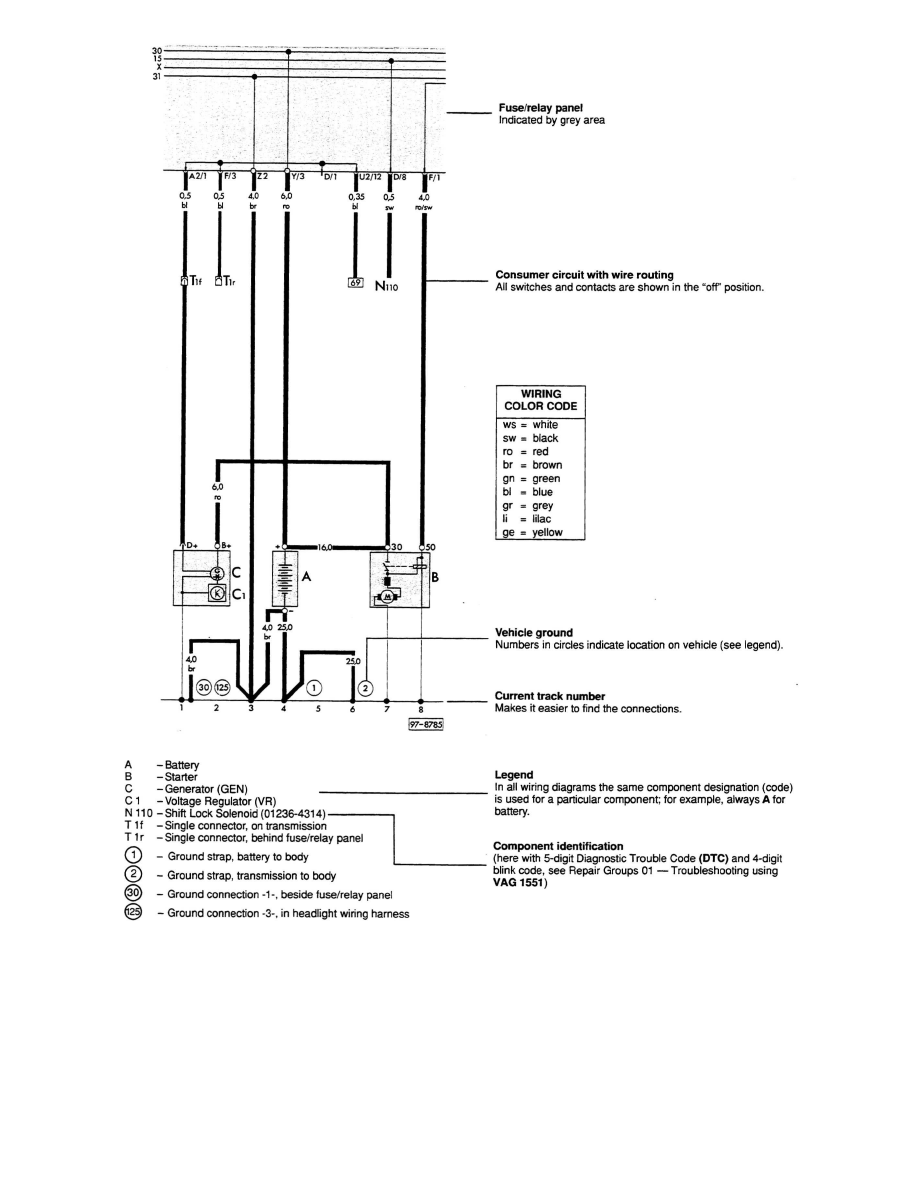

How To Read Wiring Diagrams
