Electronic Spark Control Module (W/CIS): Locations (page 3 of 3)

Make

Volkswagen

Model

Golf

Engine

L4-1781cc 1.8L SOHC

Year

1987

Section

Relays and Modules - Computers and Control Systems › Electronic Spark Control Module › Locations

Powertrain ManagementW/CIS · page 3 of 3

Electronic Spark Control Module: Locations
W/AFC, Digifant II

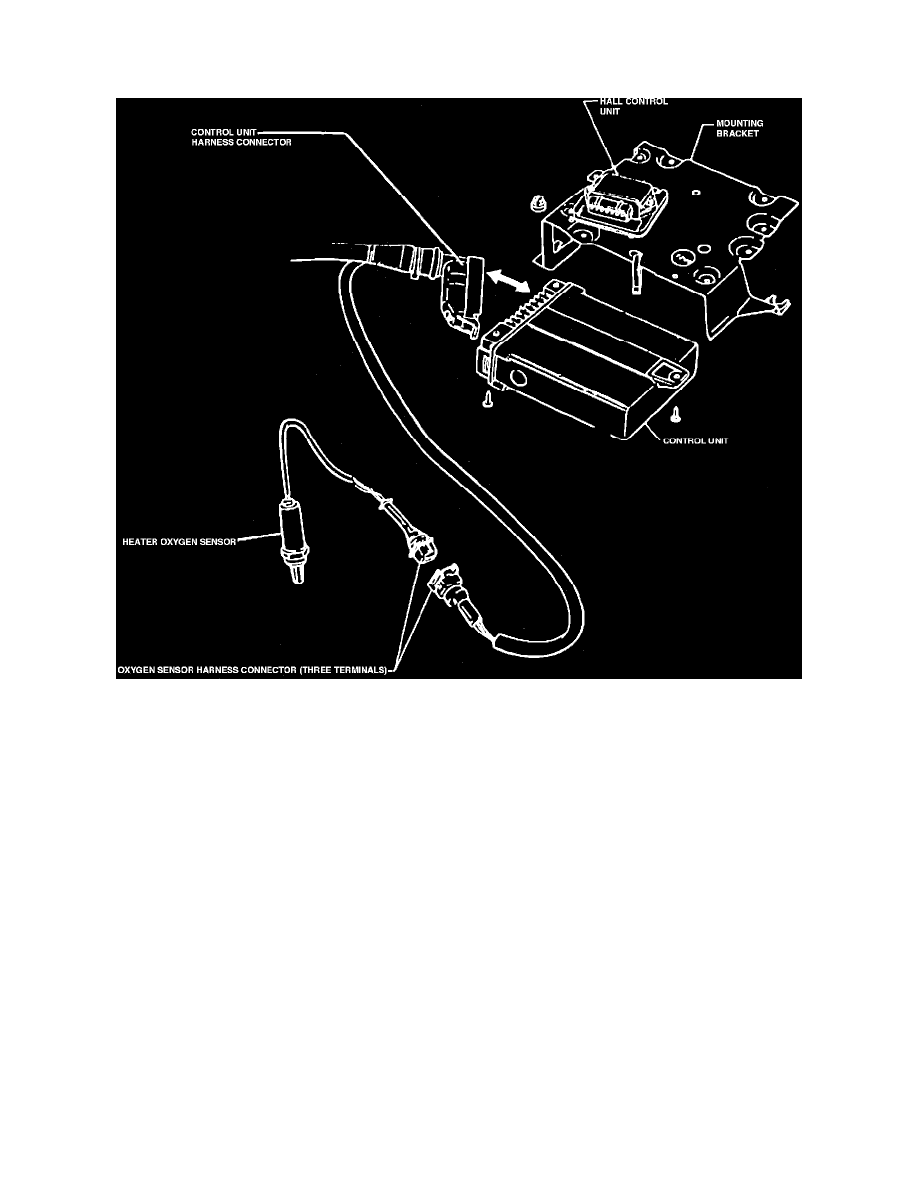

Fuel Injection System Components (Part 1 of 5).

Hall Control Unit on Digifant Control Unit Mounting Bracket In LH Side Of Plenum
